Control cabinet
- Size
- 500 × 504.5 × 650 mm
- Weight
- 48 kg
- Protection
- IP55
- Cooling
- Fan
01 / INTEGRATED AUTOMATION
Batam Industrial Park, Indonesia
Industrial welding automation for stability, speed, and precision.
Arc and laser welding robots, 6-axis industrial robots, workstations and steel-structure systems — engineered, integrated and commissioned for your production line. [TBD-CONFIRM]
Products
Products and systems.
5 categories · 27 products · robots, workstations and systems
01

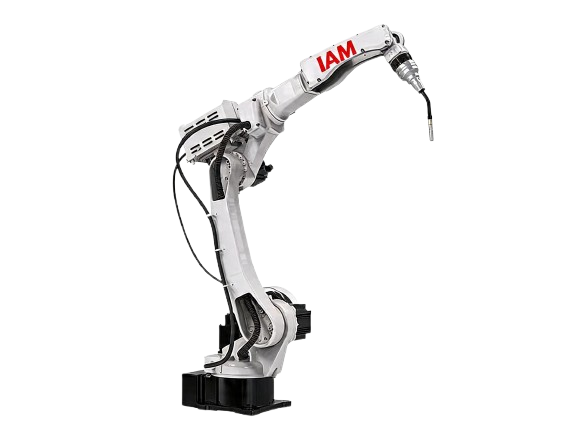

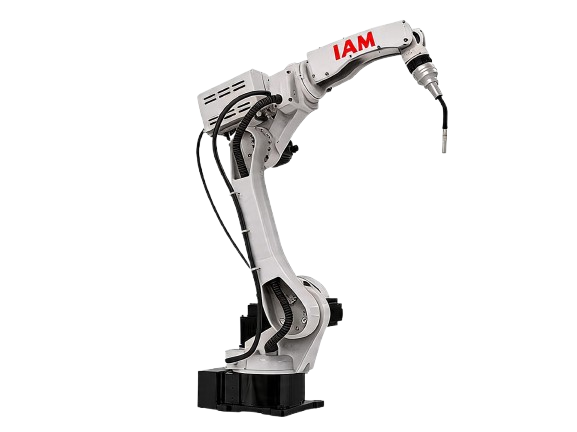

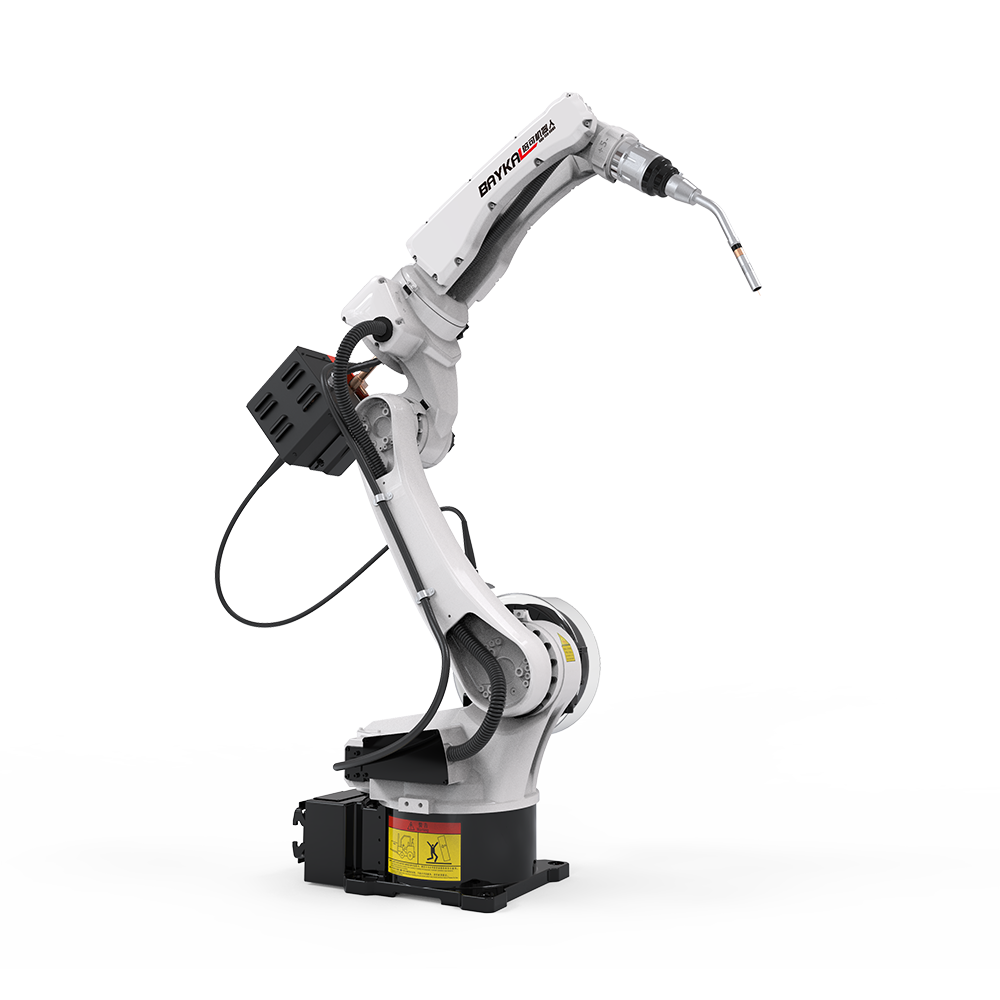

MIG welding robotsSix-axis MIG robots for precise, stable industrial welding.Explore category ↗
02

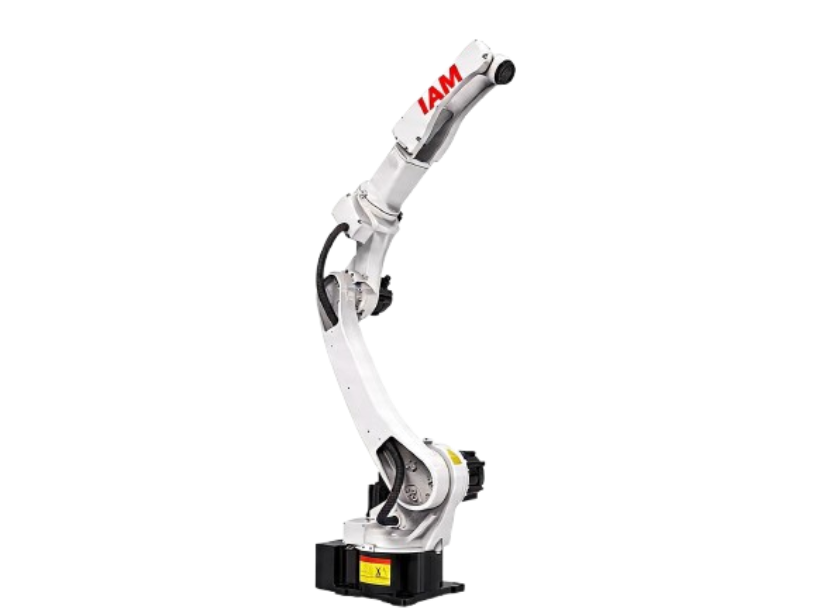

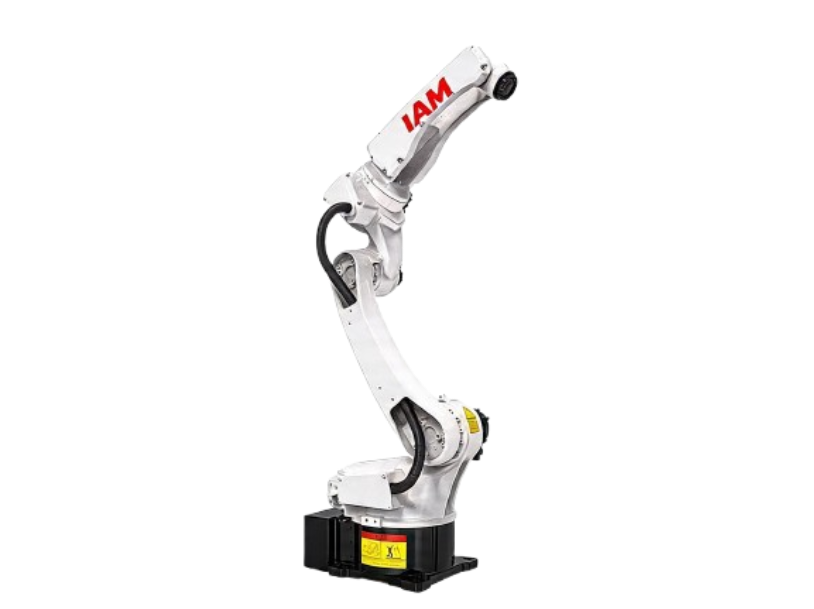

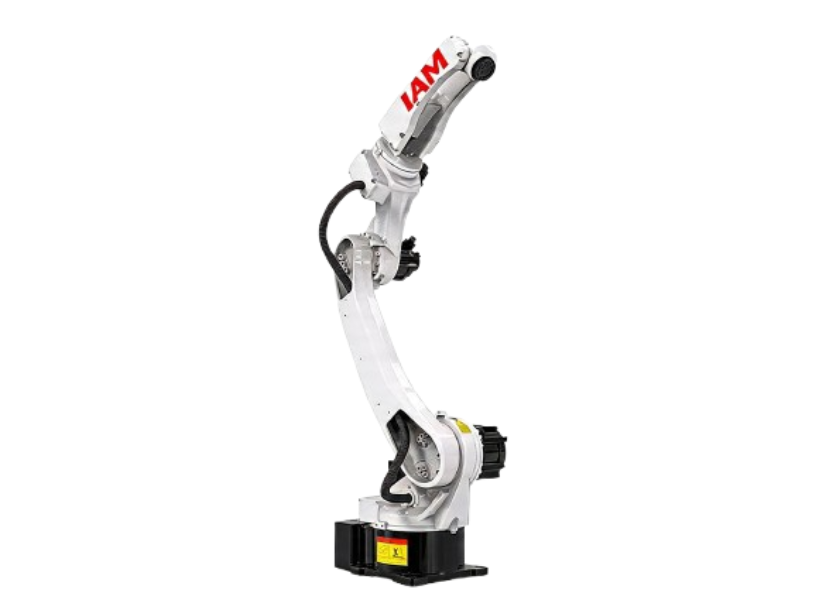

Handling robotsSix-axis robots for pick-and-place, machine tending, and flexible assembly.Explore category ↗
03

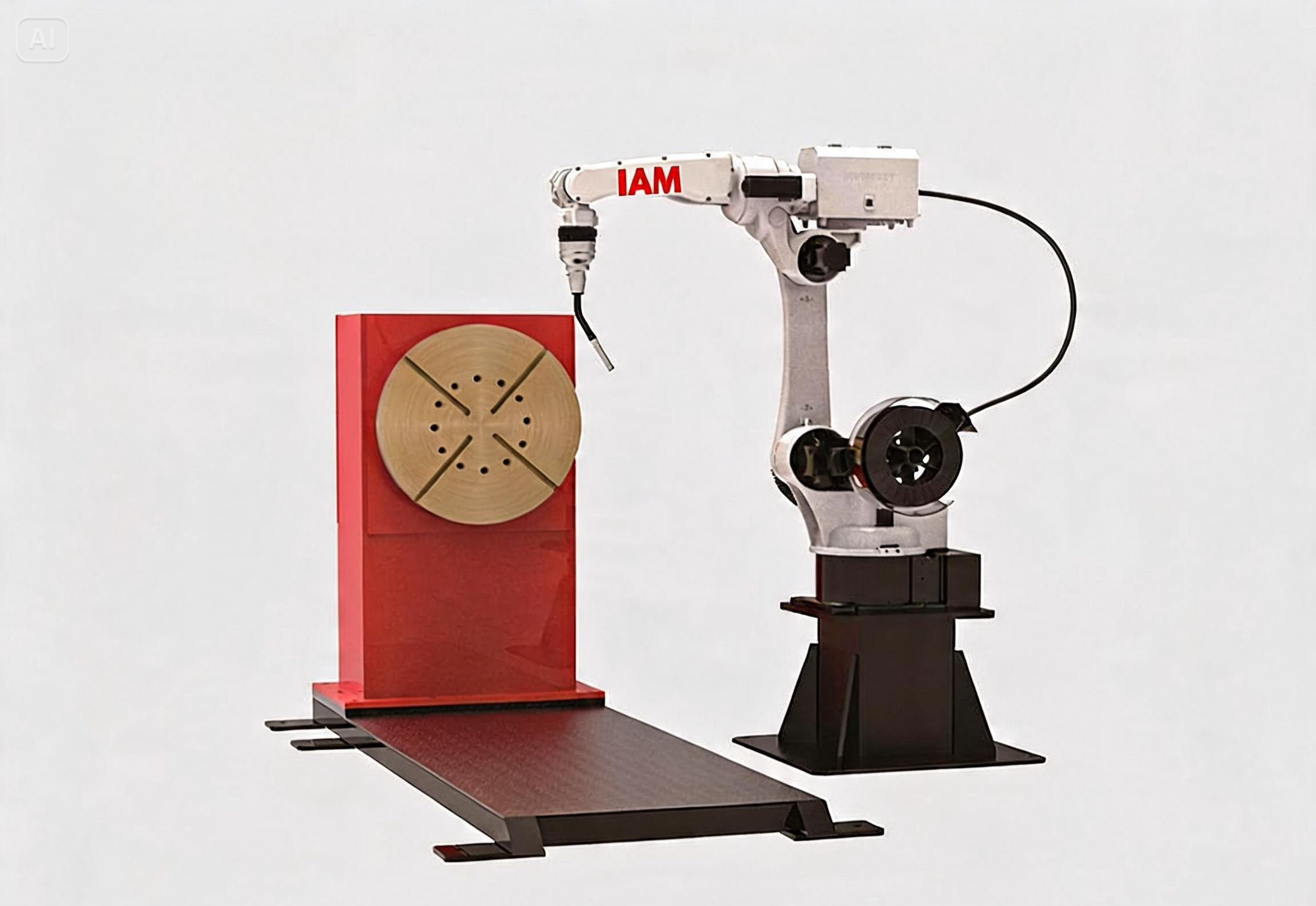

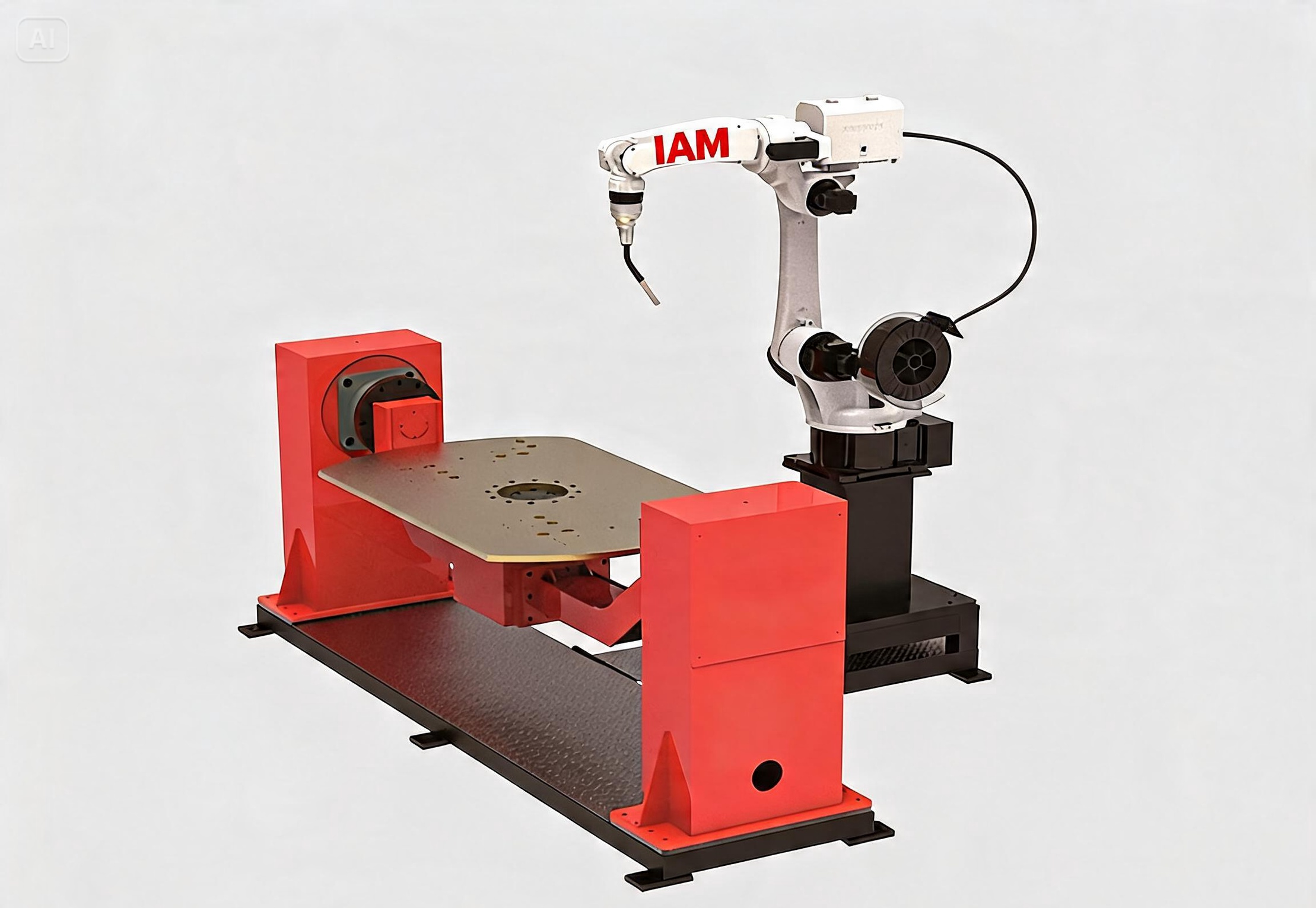

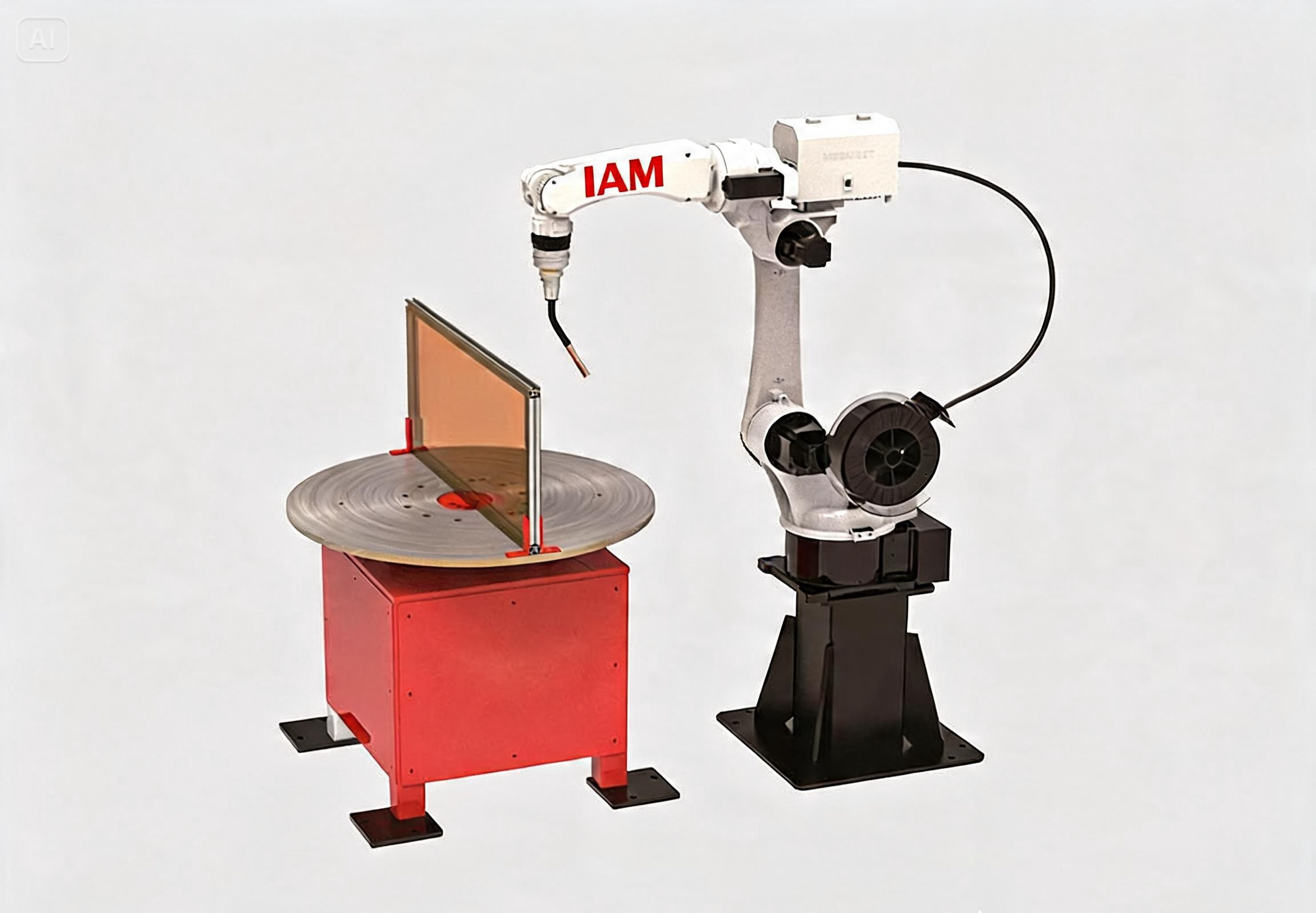

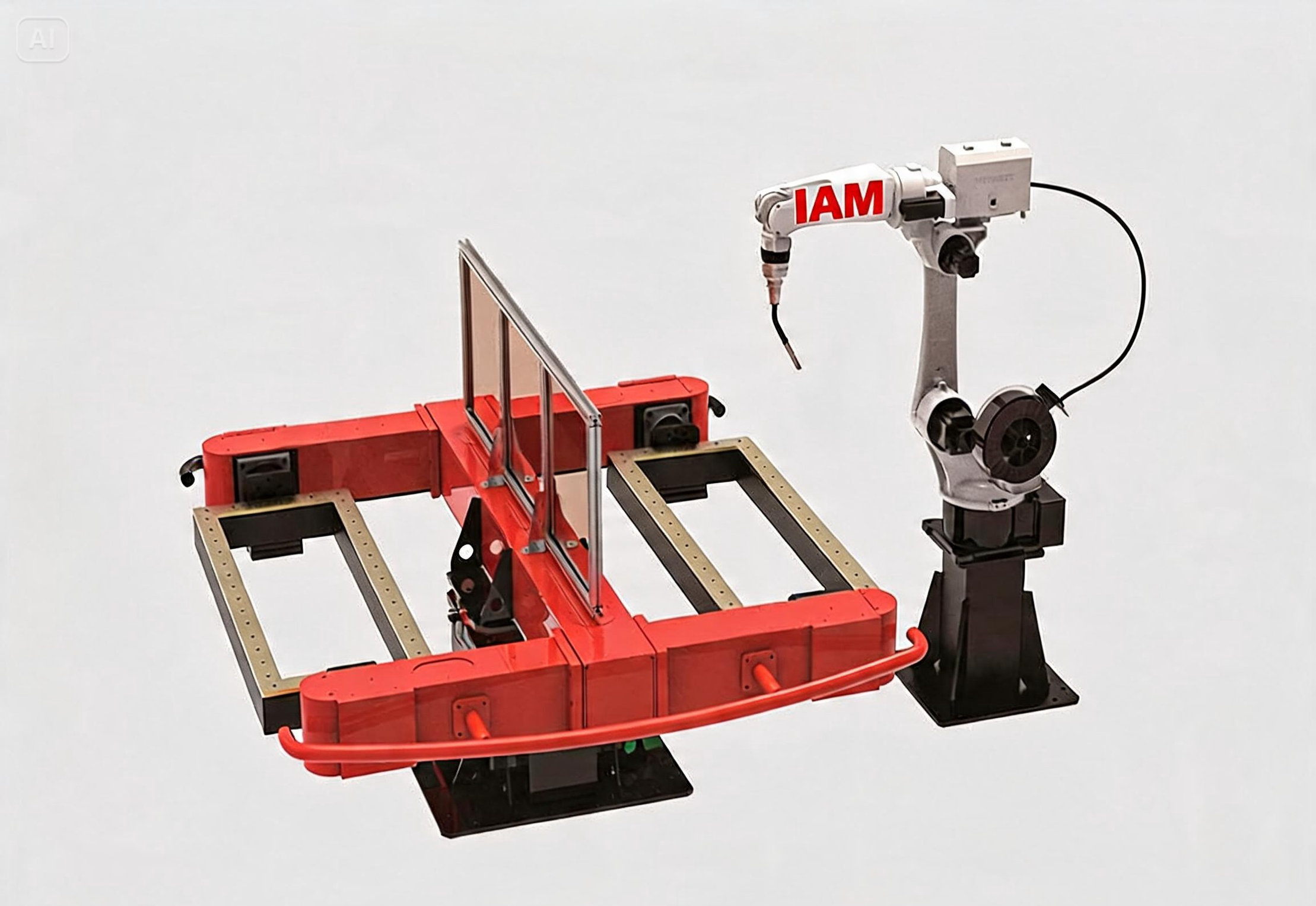

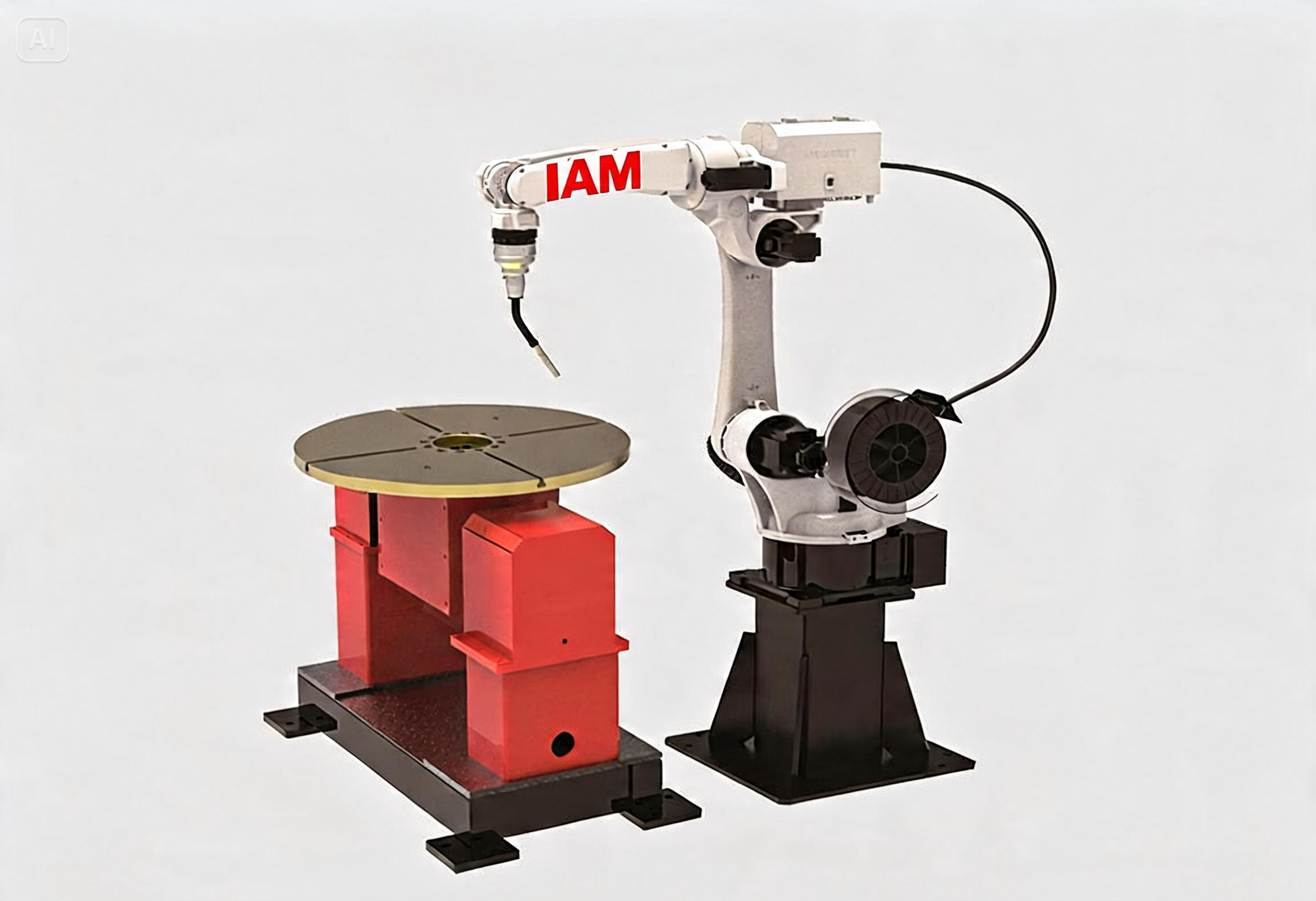

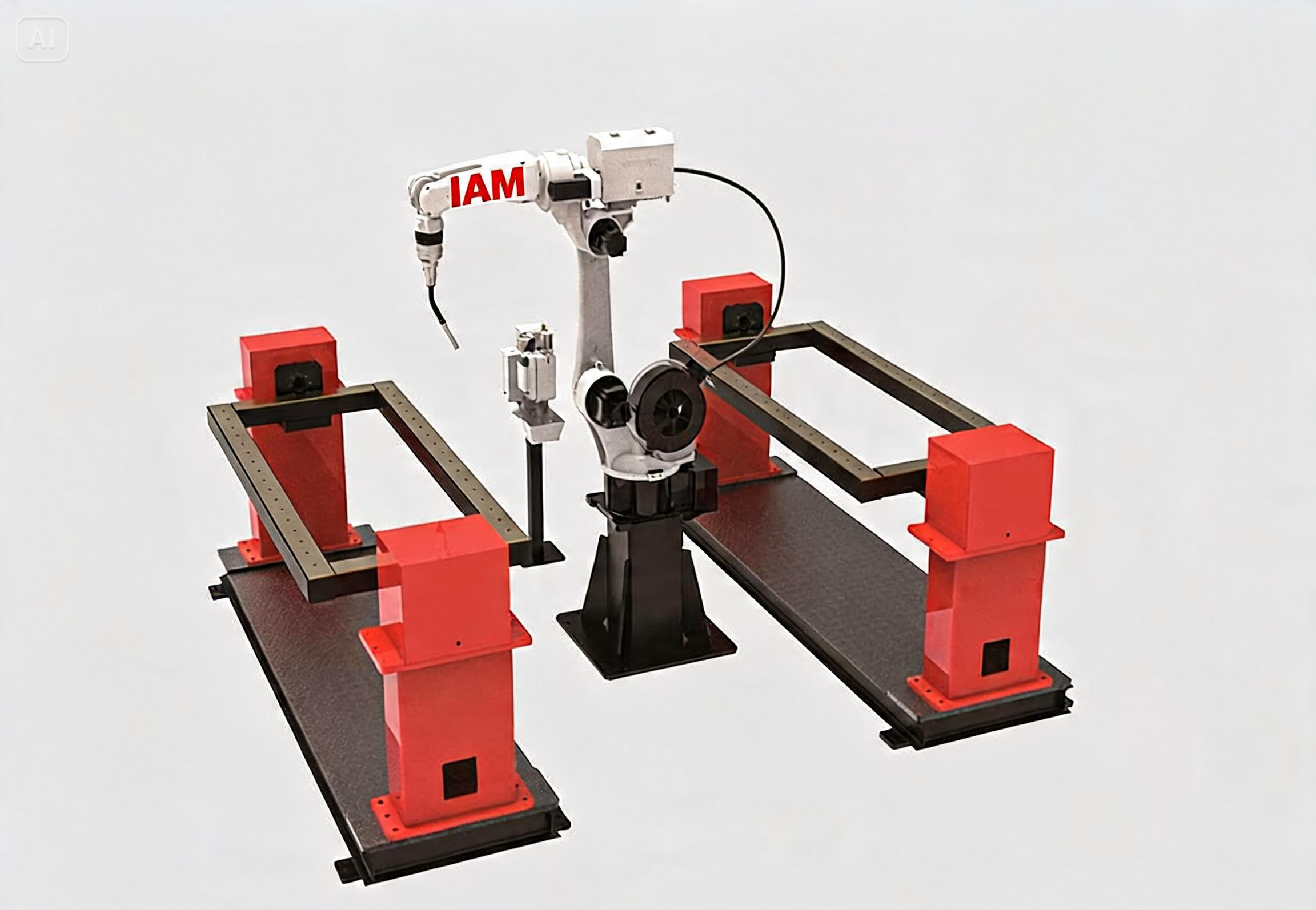

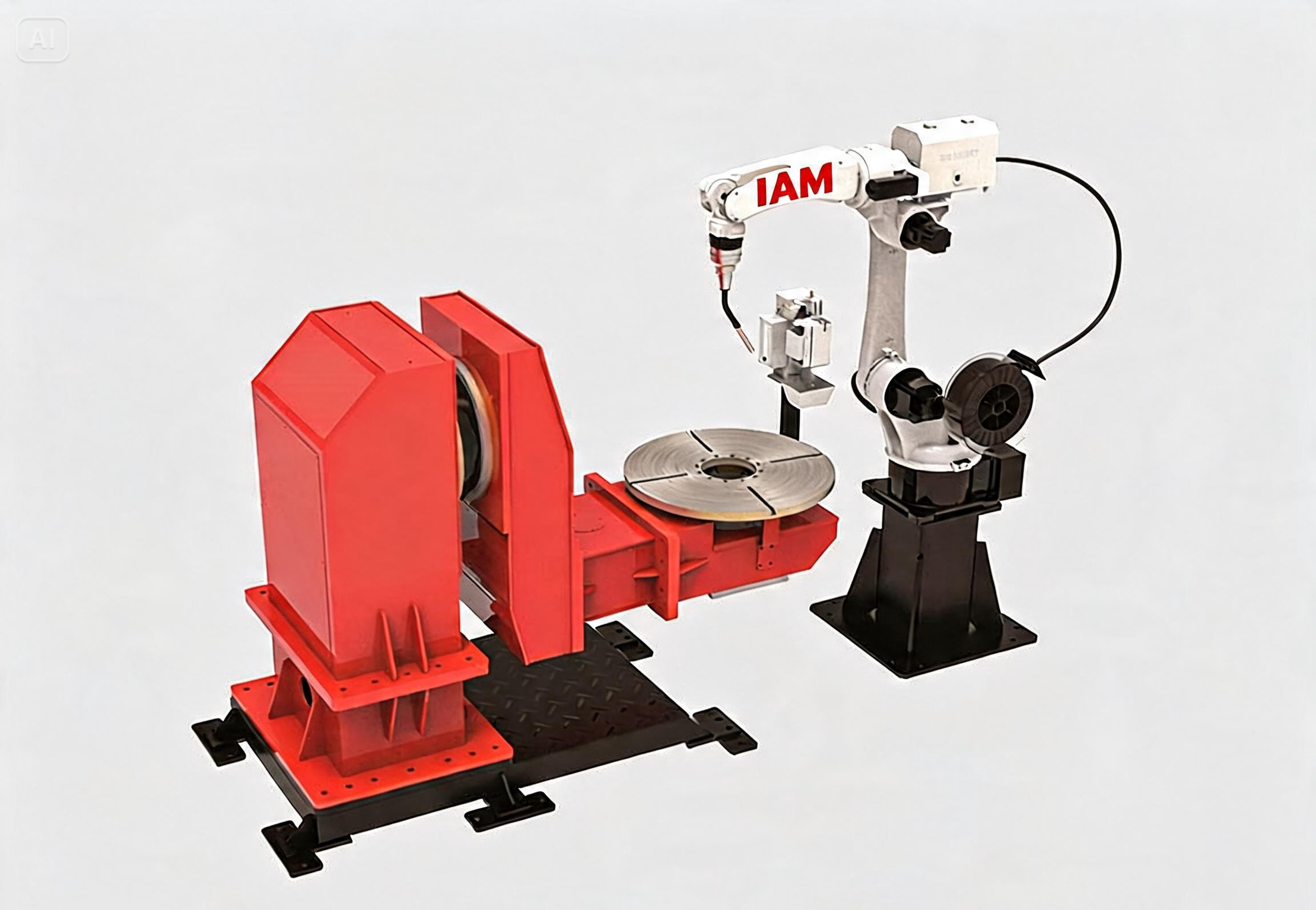

Welding stationsSingle-, dual-, and multi-axis positioners for complex workpieces.Explore category ↗
04

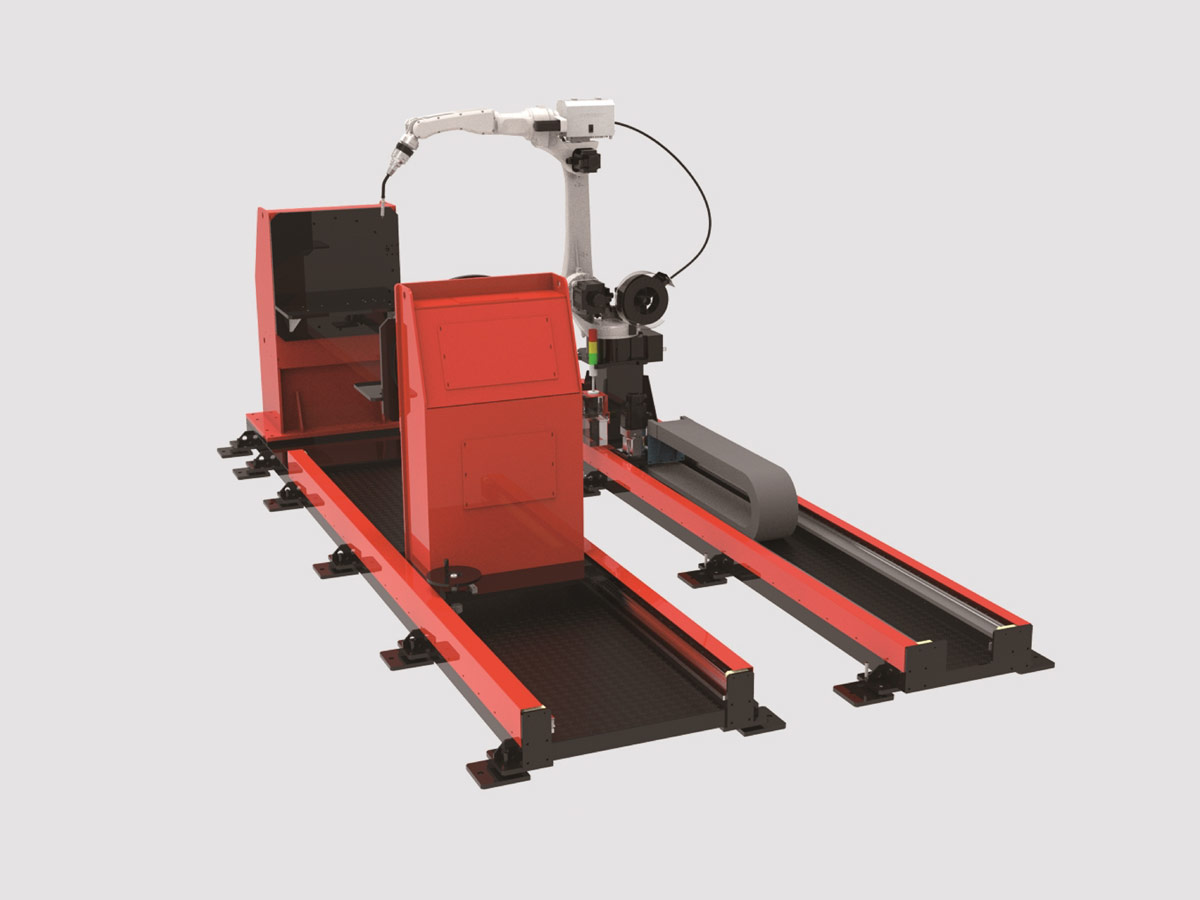

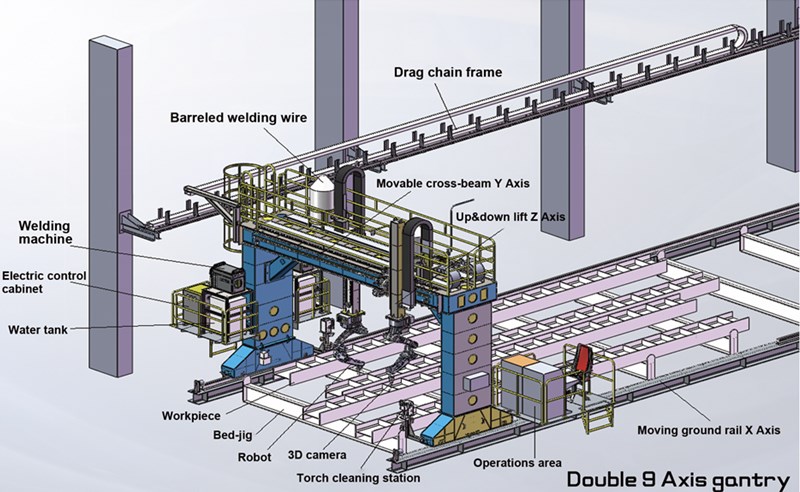

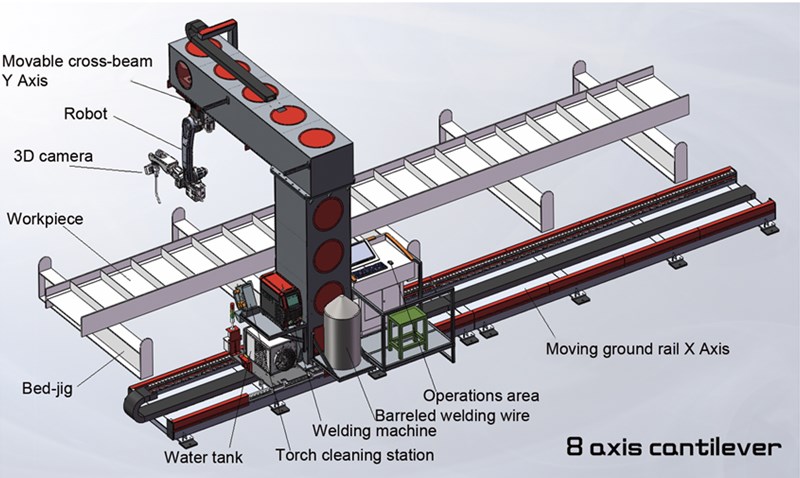

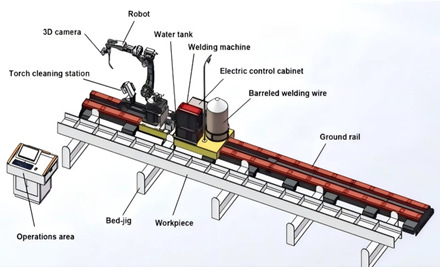

Steel-structure systemsIntegrated ground-rail, gantry, and cantilever welding workstations.Explore category ↗
All products 17 products
Applications
Welding applications.
IMAGE UNDER DEVELOPMENT
LASER WELDING
Laser welding
Robot-based laser welding for wire-filler and aluminum wire-filler processes.
Discover more
IMAGE UNDER DEVELOPMENT
ROBOTIC AUTOMATION
Steel-structure welding
Flexible welding systems for large structural members.
Discover more
IMAGE UNDER DEVELOPMENT
STEEL STRUCTURES
Power tower feet
Dedicated robotic welding for power-tower components.
Discover more
Steel structures
Intelligent welding workstation for power tower feet
- Parameterized input from drawing dimensions
- Multiple welding parameter sets entered by operators
- Whole-process data management and MES connectivity
- Quick installation, teach-free program change and short training
Technology
Welding technology.
Robot body
Built for welding: cables and media run inside the arm, so the torch reaches tight joints without trailing lines.
- 01Narrow hollow double-support wrist with small output flange
- 02Large hollow structure: torch and cable routed internally
- 03Gas, cable, air and water cooling lines integrated in the body
- 04Quick-change joints for torch water cooling and gas lines
- 0514-pin interface compatible with most welding power sources
- 06Built-in compressed air line for dust cleaning
- 07Die-cast body, straight-back forearm design
- 08Base opening for easy maintenance; spring-protected cable package
Control system
Teach pendant
- Size
- 225 × 285 mm
- Weight
- 0.7 kg
- Cable
- 7 m / 15 m
- Screen
- 800 × 1280 resistive
- Comms
- Modbus-TCP
Controller
- Processor
- 4-core, 1.9 GHz
- Memory / storage
- 4 GB / 128 GB SSD
- OS
- Linux real-time
- Servo bus
- EtherCAT, 1 ms cycle
- Axes
- 8 robot + 8 external
Multi-external-axis linkage
Up to 14 axes in simultaneous linkage.
Welding process package
Arc/laser tracking, weaving, TCP calibration, 3D seam recognition.
Offline programming
Generate the welding program from the 3D model.
Graphical interface
Picture-based, intuitive programming.
Motion performance
Speed, path and sample transition planning.
Multi-sensor fusion
Point laser, line laser and 3D vision.

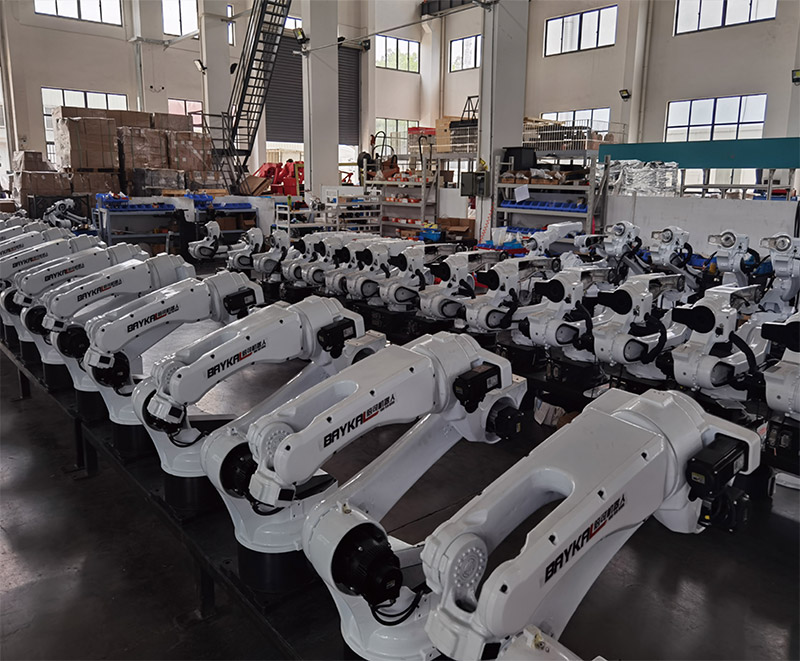

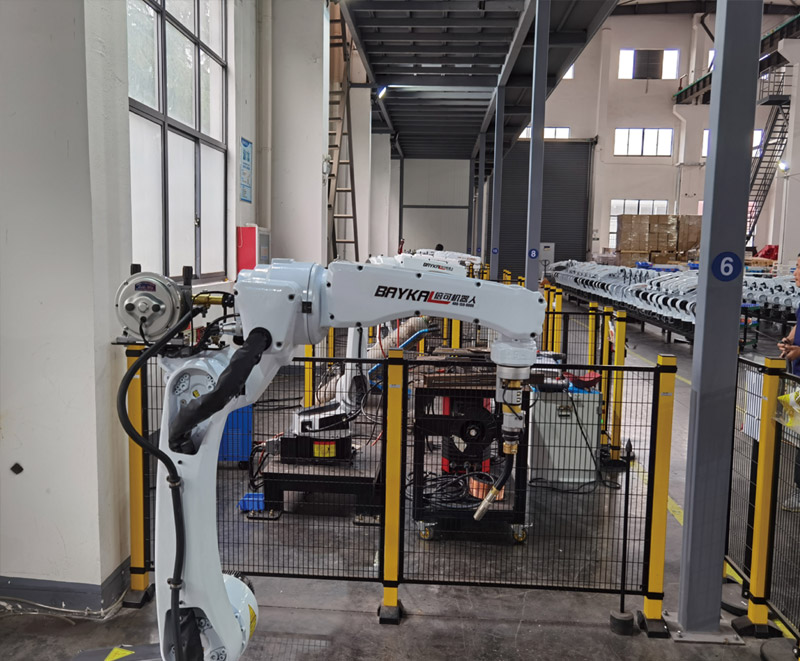

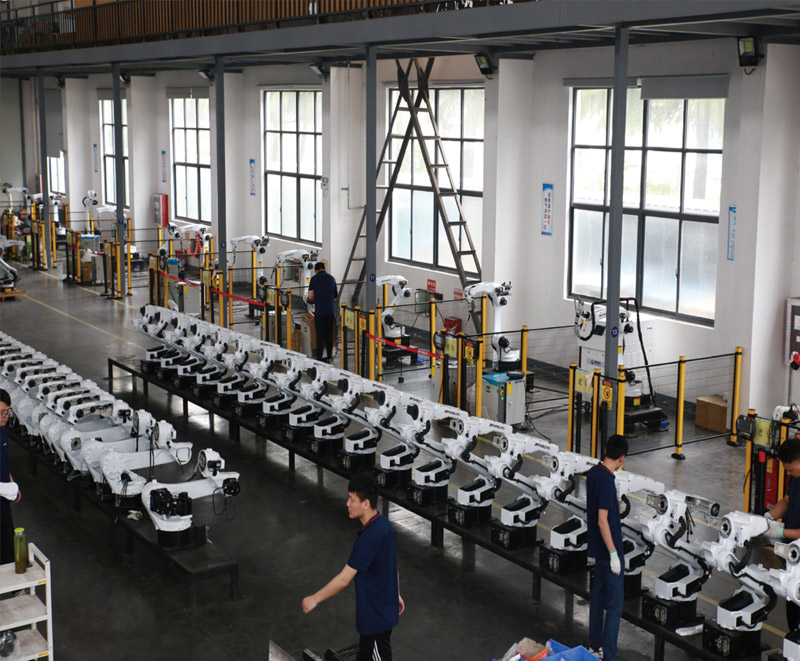

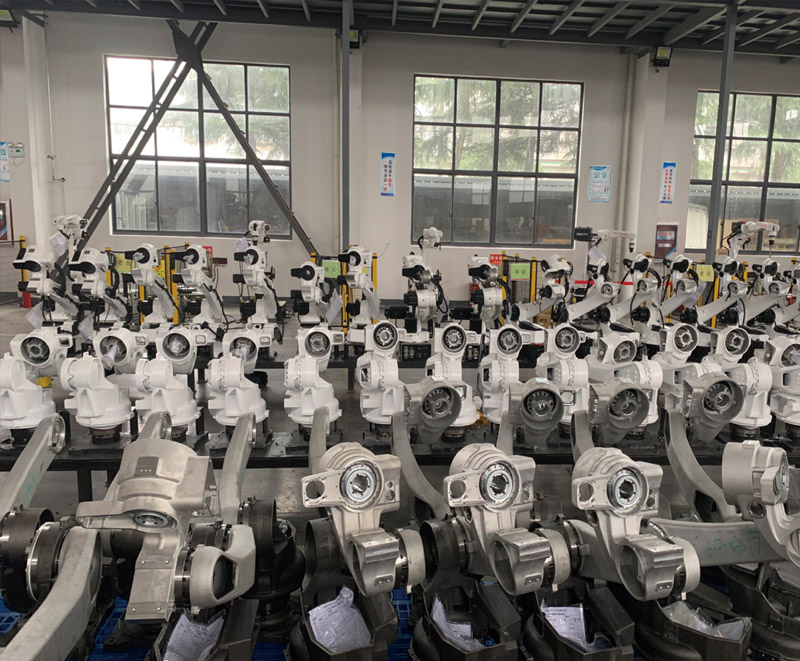

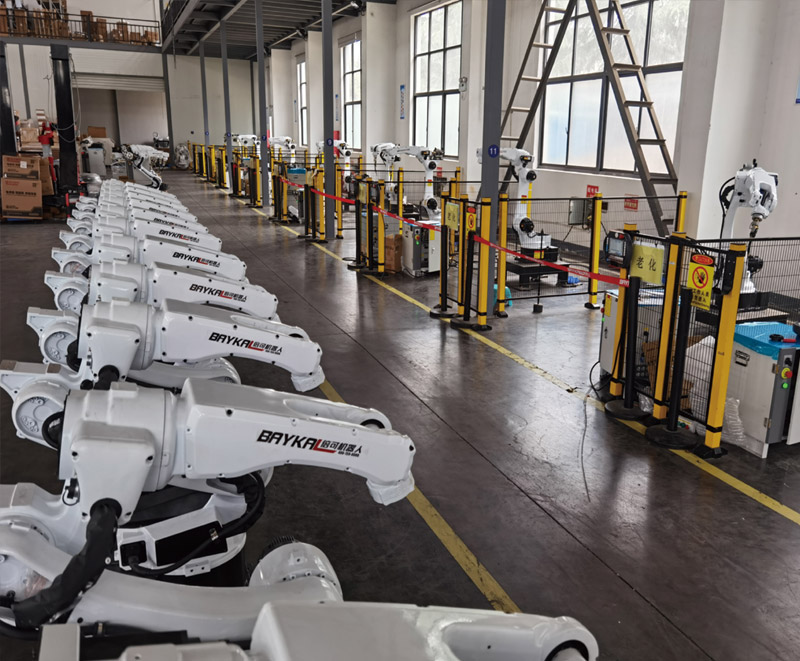

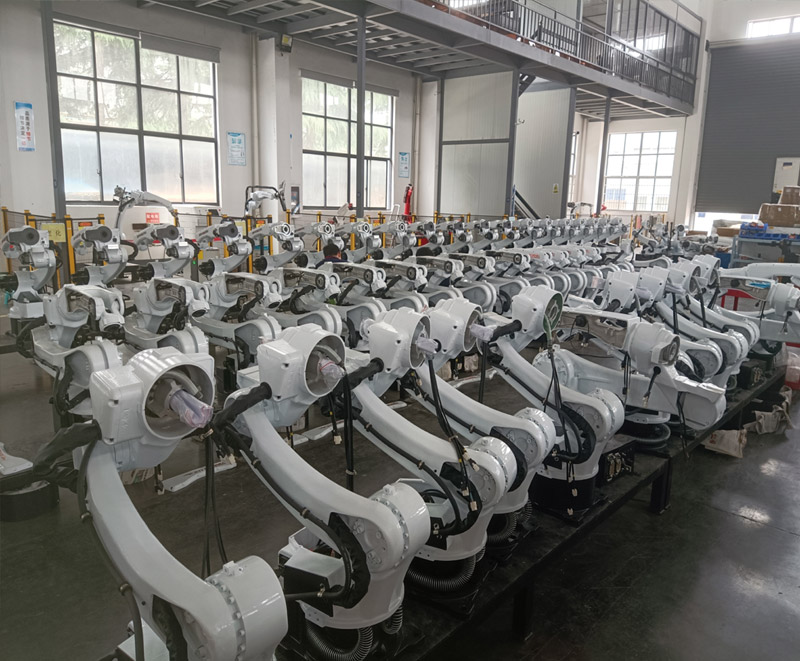

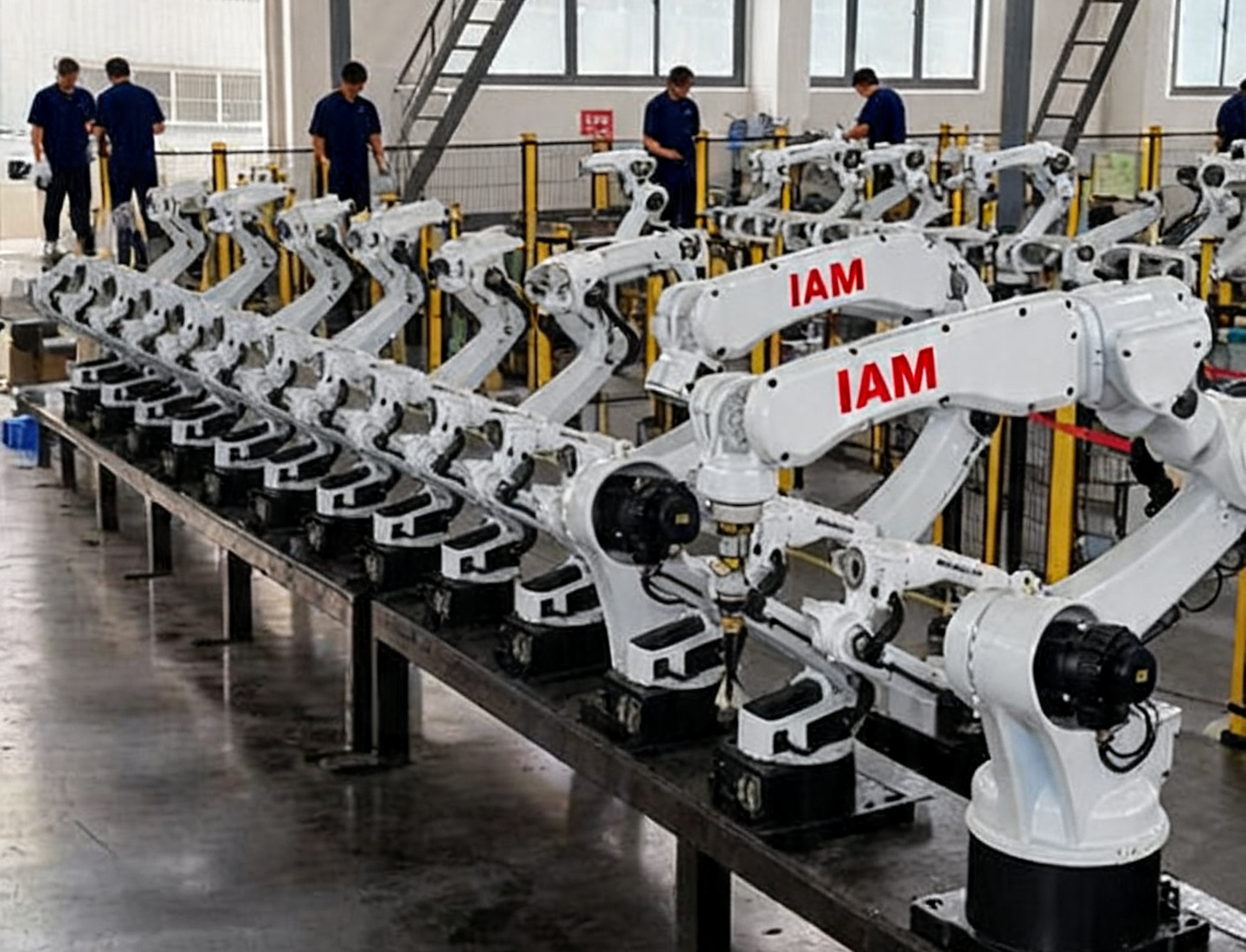

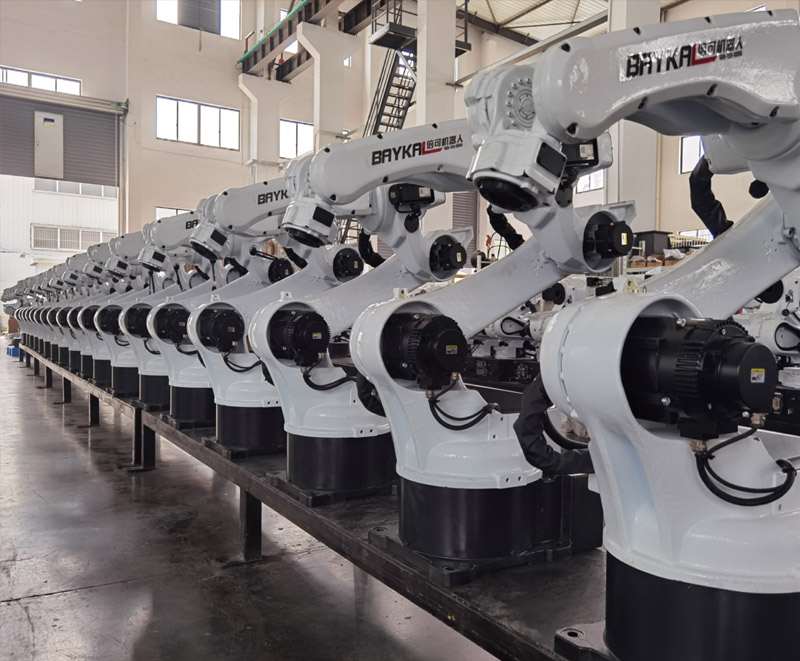

Factory
Designed, assembled and integrated in Batam.
Explore IAM's assembly and integration, structural fabrication and control-panel manufacturing capabilities.
Facility details and production figures are to be confirmed.
- Factory area
- [TBD]
- Annual capacity
- [TBD]
- Engineering team
- [TBD]
Services & support
From installation to the hundredth shift.
Automation pays back only when it keeps running. We stay with the system after it ships.
Commissioning
On-site installation, calibration and production start-up.
- Installation and calibration on your floor
- Welding program set-up for your parts
- Acceptance run before handover
Operator training
Hands-on training so your team can run, adjust and maintain the system.
- Operation and safety
- Programming and parameter adjustment
- Routine maintenance
Technical support
Remote and on-site support, spare parts and maintenance.
- Remote troubleshooting
- On-site service visits
- Spare parts supply
Certifications
Quality and compliance.
Certification information will be added when confirmed.
Certification details [TBD]
Markets
Markets we serve.
Steel structures
Robotic welding for steel structures.
Power infrastructure
Power-sector applications to be confirmed.
Industrial fabrication
Fabrication applications to be confirmed.
Selected clients
Client references [TBD]
Resources
Product resources.
PDFComing soon
Product catalogue
DownloadPDFComing soon
Robot datasheet
DownloadPDFComing soon
Company brochure
DownloadAbout IAM
Welding automation, made for your line.
IAM designs and integrates robotic welding systems for consistent quality at production speed.
We support every stage: product selection, system design, testing, commissioning, operator training and ongoing support.
